Designed for seamless and efficient production of toroidal transformers. This robust machine offers high precision and adaptability, ideal for handling various wire sizes and transformer types, ensuring top-notch performance in demanding industrial environments.
It can simultaneously wind and tape large-sized ring magnetic cores. The double-head design avoids the trouble caused by secondary loading and unloading of large magnetic cores, reduces production links, and improves production efficiency. This machine also uses a programmable controller (PLC) combined with a touch screen for control while retaining the physical buttons with functions that have been commonly used in the past. At the end of the entire control system, real-time feedback from the servo motor and stepper motor is added to achieve full control. Closed-loop control ensures a fast and precise winding process.
Features:
Explore the robust capabilities of our floor-type tunable transformer winding machine, which is engineered to deliver exceptional performance and reliability. Designed for the demands of large transformers and military-industrial applications, each feature ensures precision, efficiency, and durability in high-capacity environments.

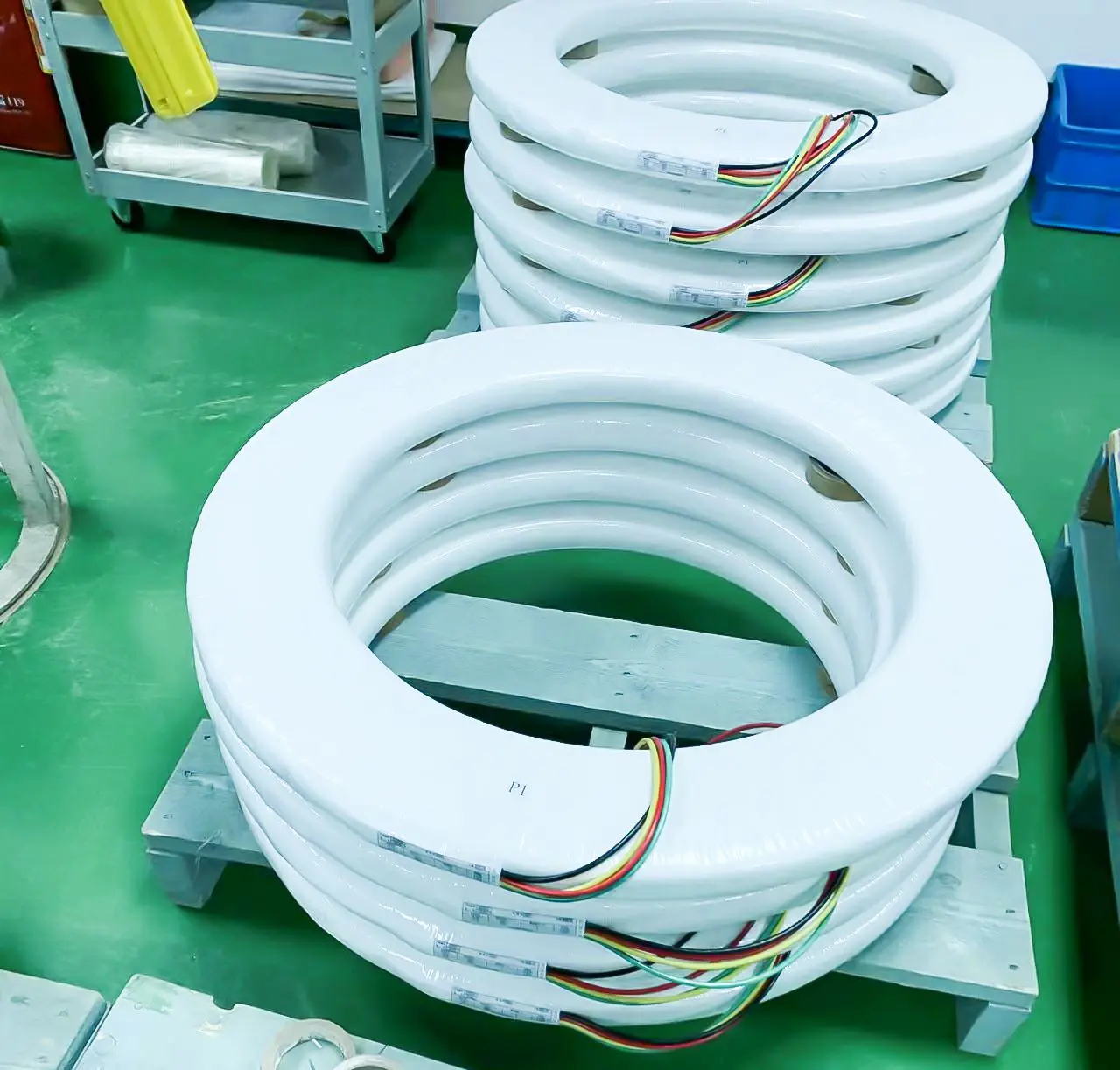

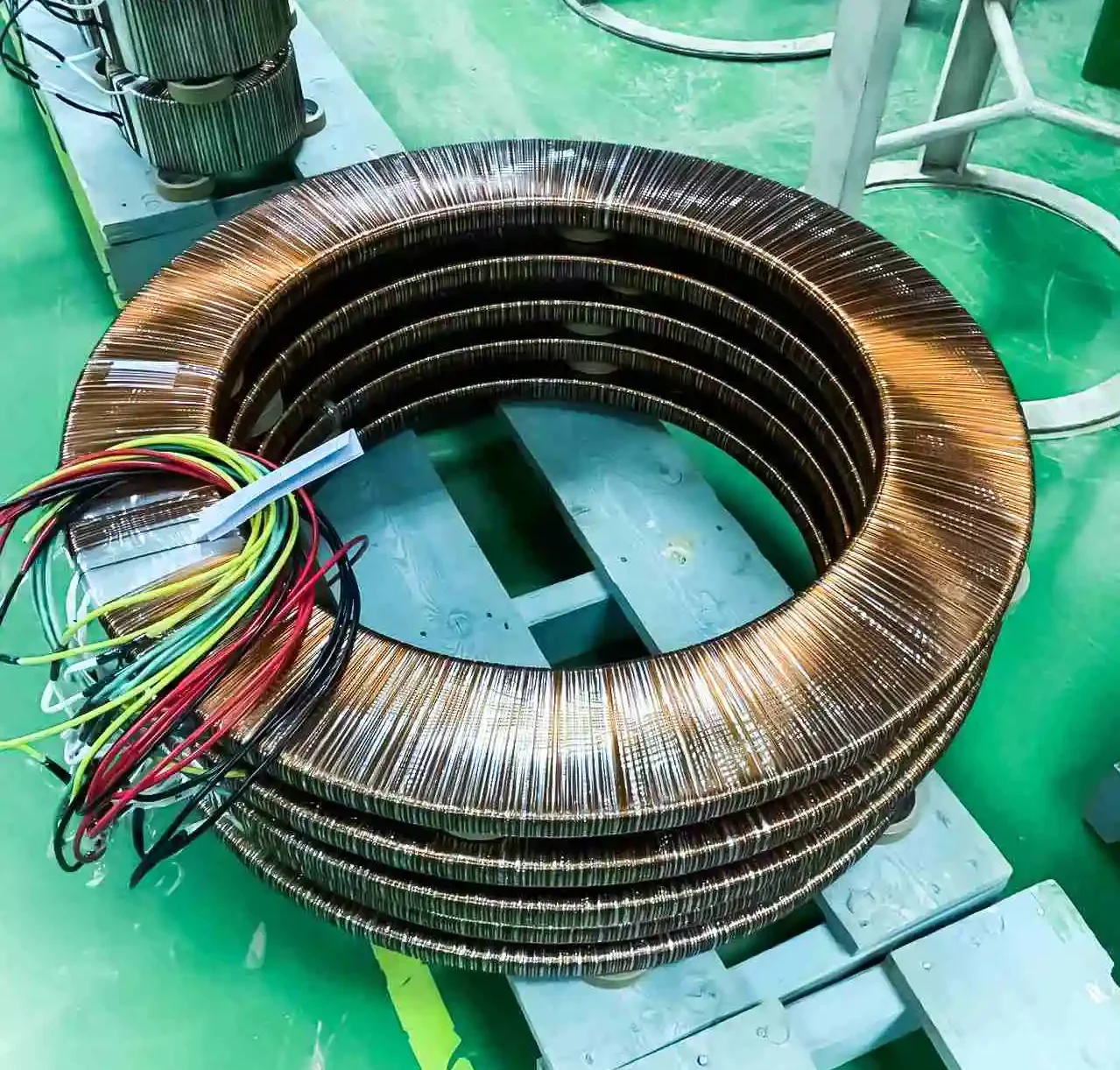

The core solution of floor-type toroidal transformer winding machines is the winding of large transformers, which is suitable for large-scale military use, especially:Â
